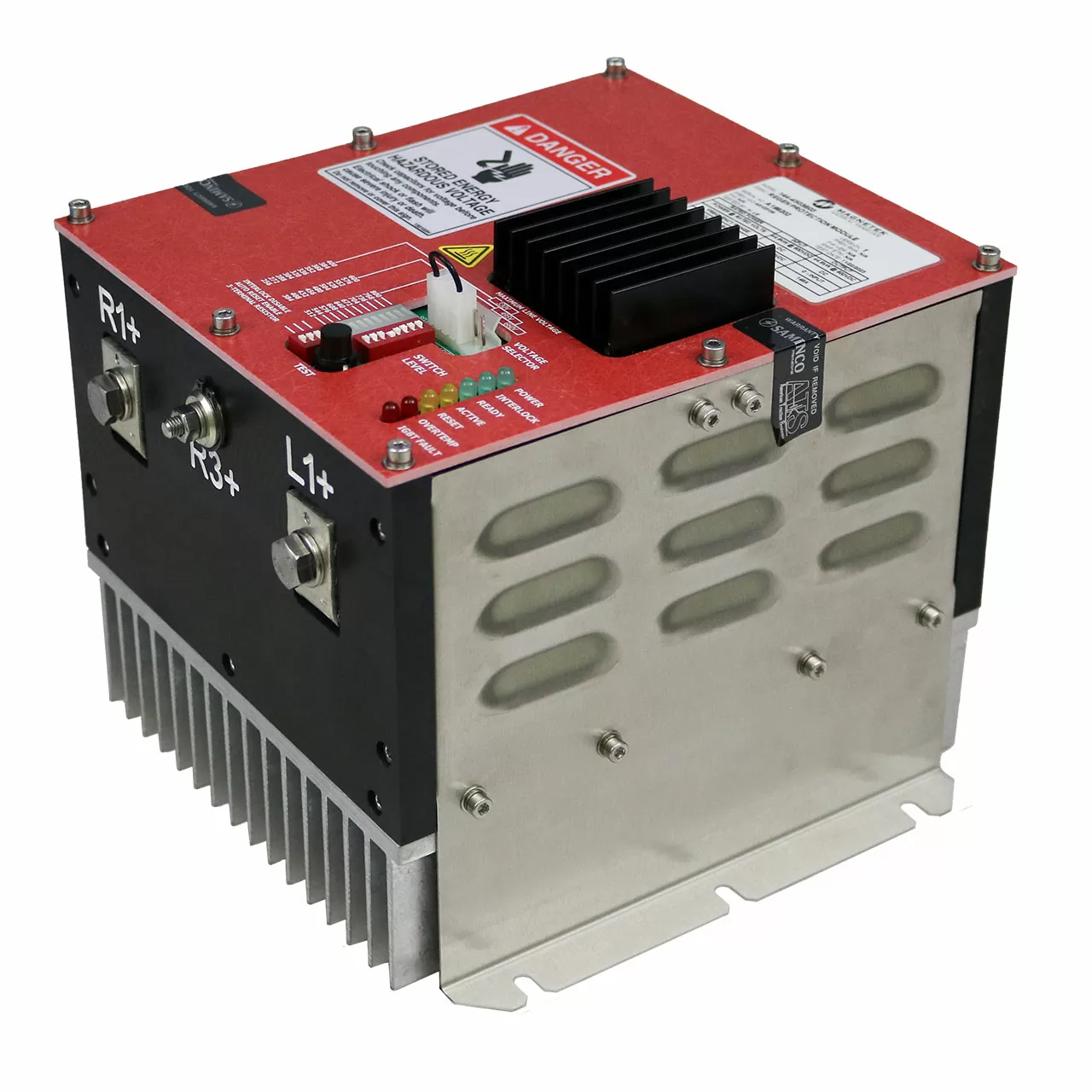

BM301
Part Number
A500950
System Description
44.6 kw @ 600 V DC, used for any DC, AC, permanent magnet, or switched reluctance motor to turn on a predefined voltage to protect all on the DC bus.
Specifications
| BM301 Specifications | A500950 |
|---|---|
| Power Rated Input | 44.6 kW @ 600 V |
| Power Rated Output | 44.6 kW @ 600 V |
| Frequency Range Input | DC |
| Frequency Range Output | DC |
| Voltage Range Input | 200 – 660 V |
| Voltage Range Output | 0 – input |
| Amps Rated Power Input | 62 A |
| Amps Rated Power Output | 146 A |
