Rail
ATS’ AC & DC IGBT propulsion systems are installed on conventional mainline locomotives, genset locomotives, Battery and Hybrid Locomotives, Maintenance of Way Equipment and third rail/catenary systems.
Highlights
- New construction or modernization of existing propulsion systems
- AC or DC Traction Systems
- Compatible with all modern control systems – including MVB.
- Can be used with existing locomotive traction alternators.
- Single, Dual and Triple Genset systems
- Auxiliary supplies, inverters, rectifiers, and battery chargers
- Compact modular construction
- Automatic wheel-slip and wheel-slide control
Locomotive Systems
AC Propulsion
American Traction Solutions Inc. AC Propulsion Systems for Locomotives have been operating in daily service since 2013.
Features
- Independent axle control – one inverter per motor
- Wheel Slip Control algorithm that compensates for wheel wear
- Operates at or near break down torque of the motor across the entire speed range.
- Rotor temperature compensation algorithm
- Fully integrated dead band compensation of the IGBT firing circuit.
- Brake Chopper that can be used as a machine load bank.

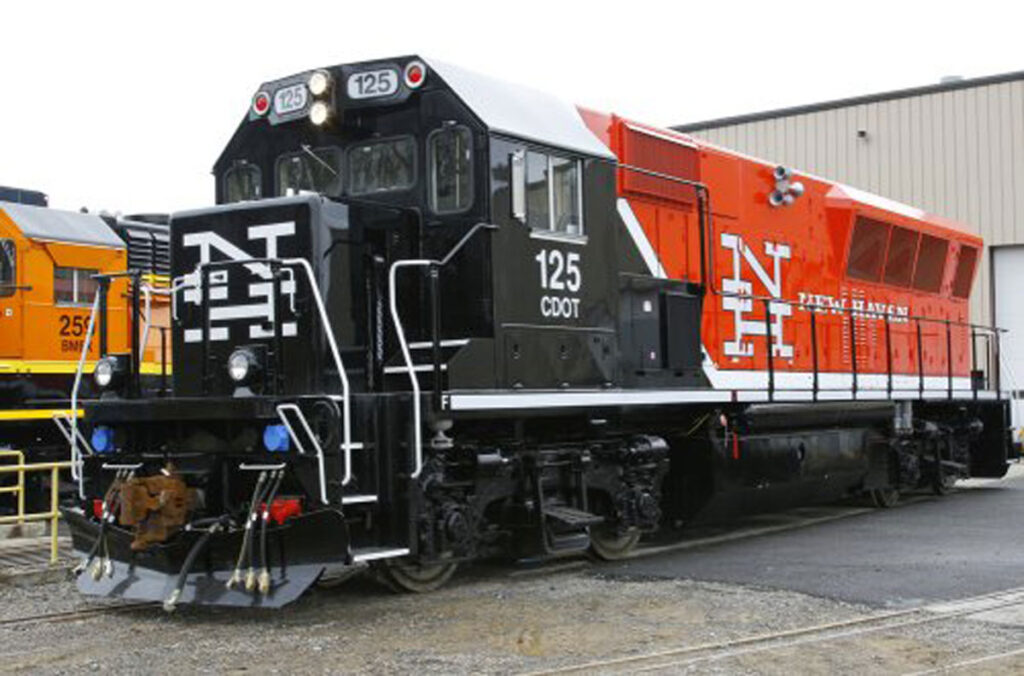

DC Propulsion
Since 2008 years of operational experience, the ATS DC propulsion system is a proven solution for modern locomotive operations.
Features
- Motor thermal overload protection
- Adjustable overcurrent protection
- Automatic wheel slip control
- Optional Field Controller eliminates reversing contactors.

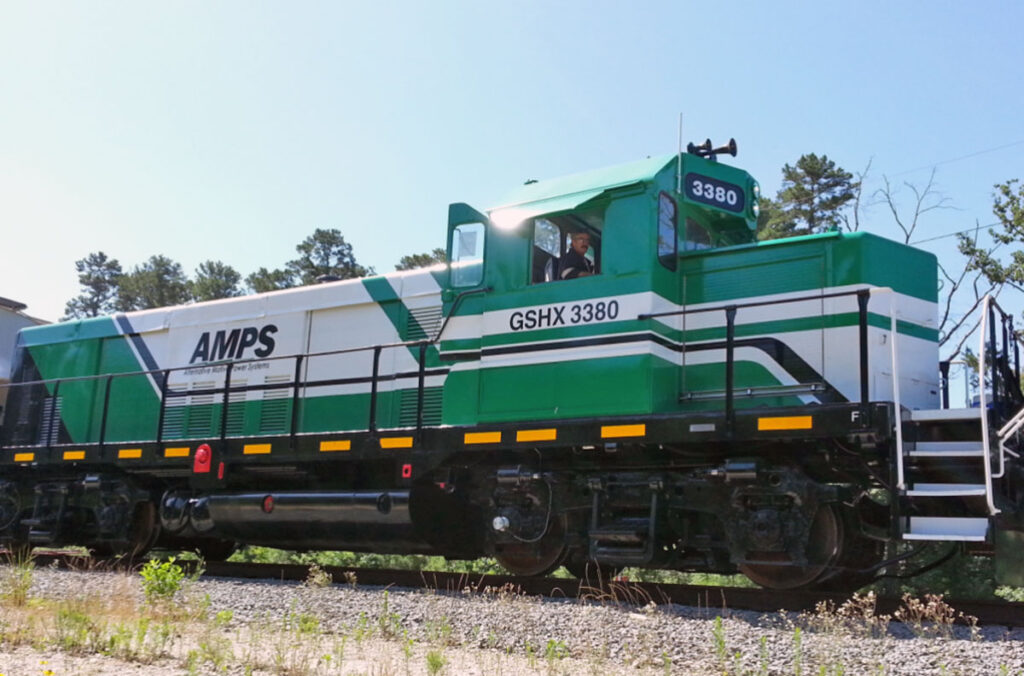

Battery & Hybrid Locomotives
ATS has provided propulsion systems and accessories for battery and hybrid locomotives since the early 1990’s.
Products
- Instantaneous (<10uS) High Current Fault Interruption
- On-board Battery Chargers
- Wayside Battery Chargers
Accessories
Dynamic Brake Choppers Blower and Compressor Controllers, Auxiliary Power Supplies other propulsion solutions are available from ATS. Including:
- Reverse Engineering and Modernization of Legacy Equipment
- On-board and Wayside Chargers up to 1.6MW
- Inverters, rectifiers, and DC/DC Choppers
