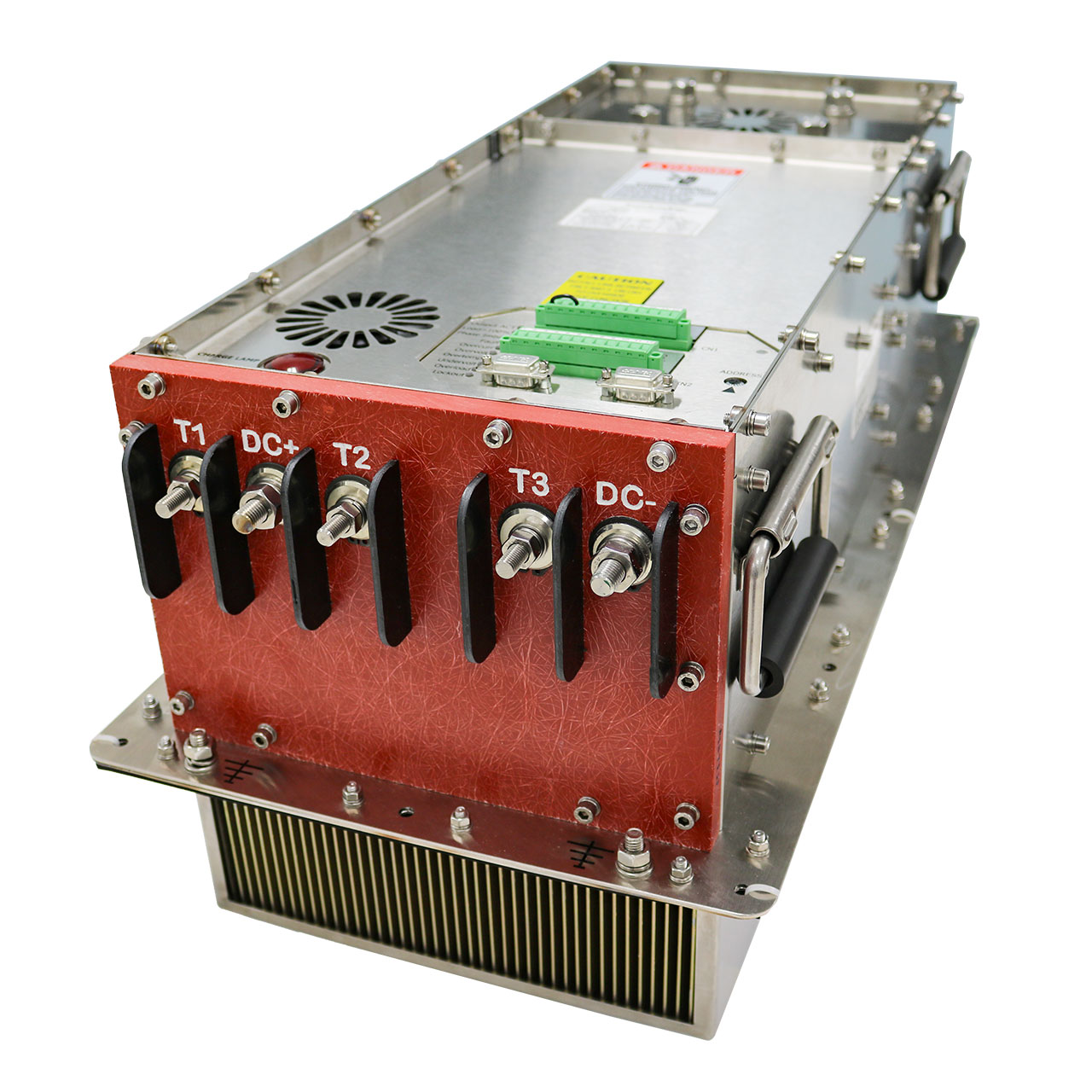

60HP Auxiliary Inverter

Part Number

A300906

For 3 phase AC motors up to 60HP that control air compressors, blowers and other AC motors at variable output frequency. Uses DC input supply.

60HP Auxiliary Inverter Specifications	A300906
Power Rated Input	45.8 kW @ 312 V
Power Rated Output	45 kW @ 208 V
Frequency Range Input	DC
Frequency Range Output	2 – 120 Hz
Voltage Range Input	120 – 500 V
Voltage Range Output	0 – 0.7 V input
Amps Rated Power Input	145 A
Amps Rated Power Output	150 A
