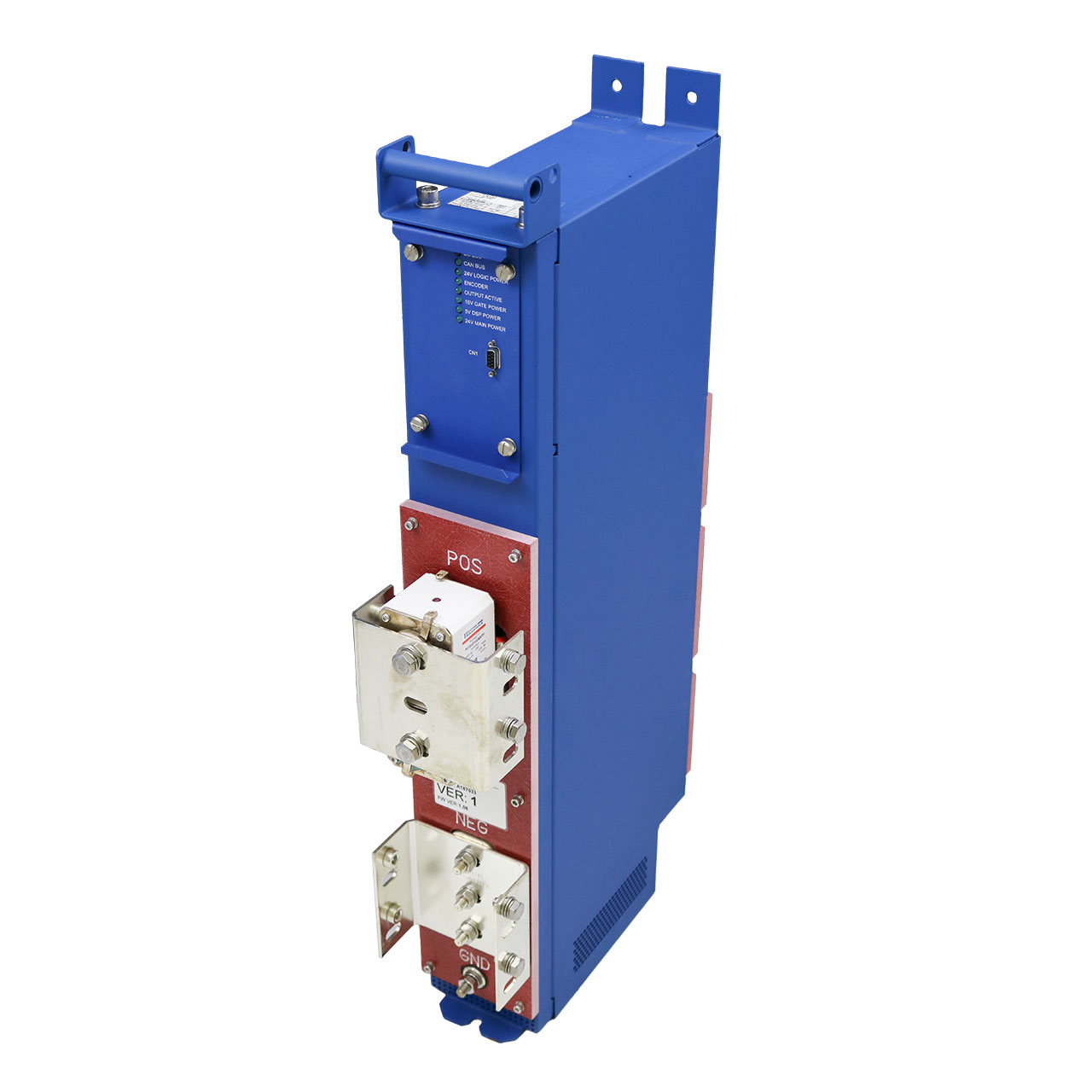

Supply/Charger Dual Module
Part Number
A300845
System Description
Dual drive module converts either AC or DC voltage inputs to DC voltage output to charge batteries.
Specifications
| Supply/Charger Dual Module Specifications | A300845 |
|---|---|
| Power Rated Input | 456 kW |
| Power Rated Output | 225 kW @0.8 pf (x2) |
| Frequency Range Input | DC |
| Frequency Range Output | 0 – 60 Hz |
| Voltage Range Input | 700 – 750 V |
| Voltage Range Output | 440 – 480 V (x2) |
| Amps Rated Power Input | 650 A |
| Amps Rated Power Output | 353 A rms (x2) |
