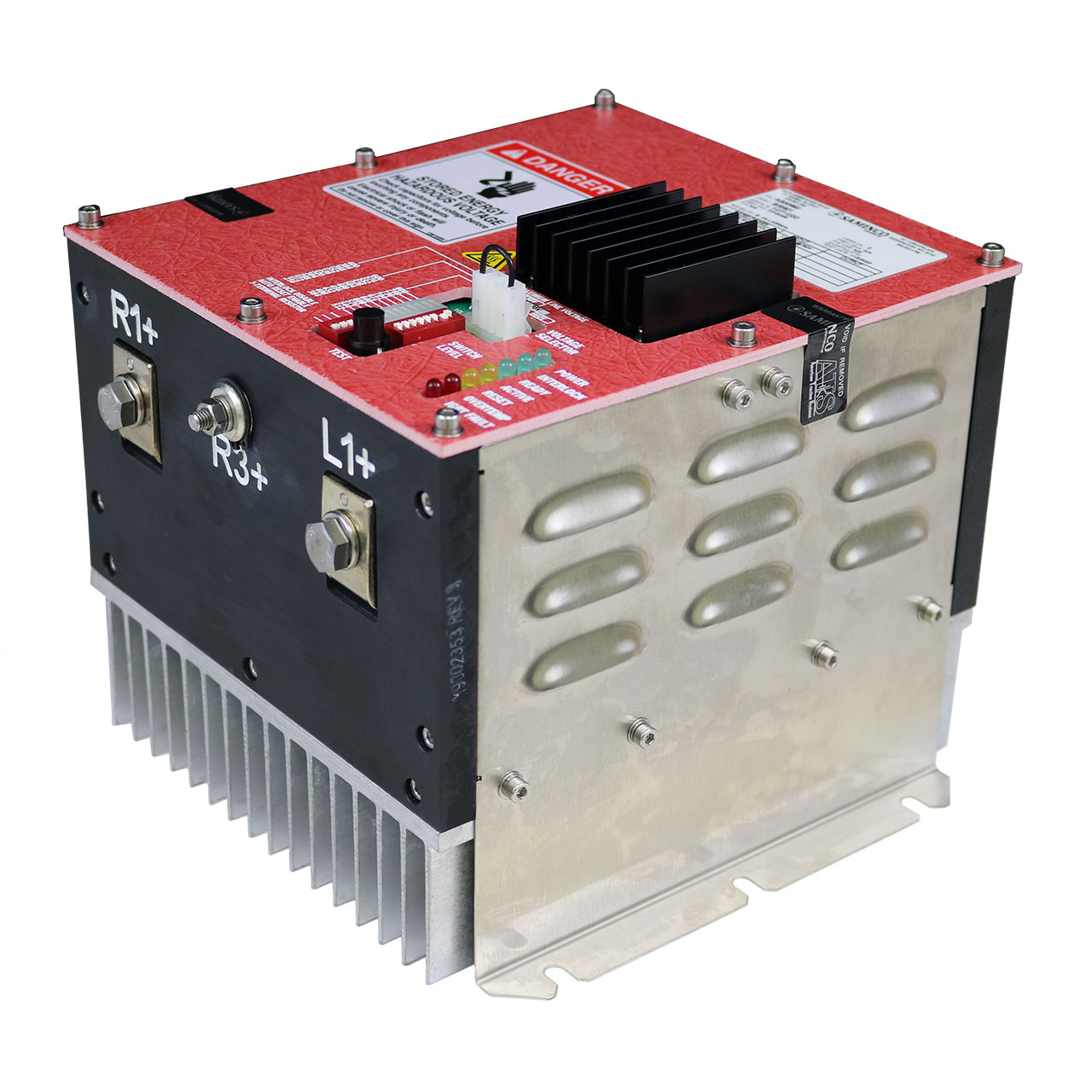

BM601
Part Number
A800993
System Description
120 kw @ 750 V DC, used for any DC, AC, permanent magnet, or switched reluctance motor to turn on a predefined voltage to protect all on the DC bus.
Specifications
| BM601 Specifications | A800993 |
|---|---|
| Power Rated Input | 45 kW @ 600 V |
| Power Rated Output | 44.5 kW @ 600 V |
| Frequency Range Input | DC |
| Frequency Range Output | DC |
| Voltage Range Input | 200 – 768 V |
| Voltage Range Output | 256 – 768 V Selectable |
| Amps Rated Power Input | 300 A 25% Duty |
| Amps Rated Power Output | 300 A 25% Duty |
