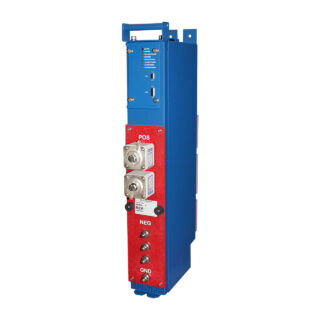

Stackable Brake Chopper
Part Number
A300826
System Description
Stackable Brake Chopper: 2 choppers stacked with capacitor to limit bus voltage to 800V.
Specifications
| Stackable Brake Chopper Specifications | A300826 |
|---|---|
| Power Rated Input | 750 kW @ 750 V |
| Power Rated Output | 745 kW |
| Frequency Range Input | DC |
| Frequency Range Output | DC |
| Voltage Range Input | 600 – 750 V |
| Voltage Range Output | 0 – input |
| Amps Rated Power Input | 1000 A |
| Amps Rated Power Output | 333 A (x3) |
