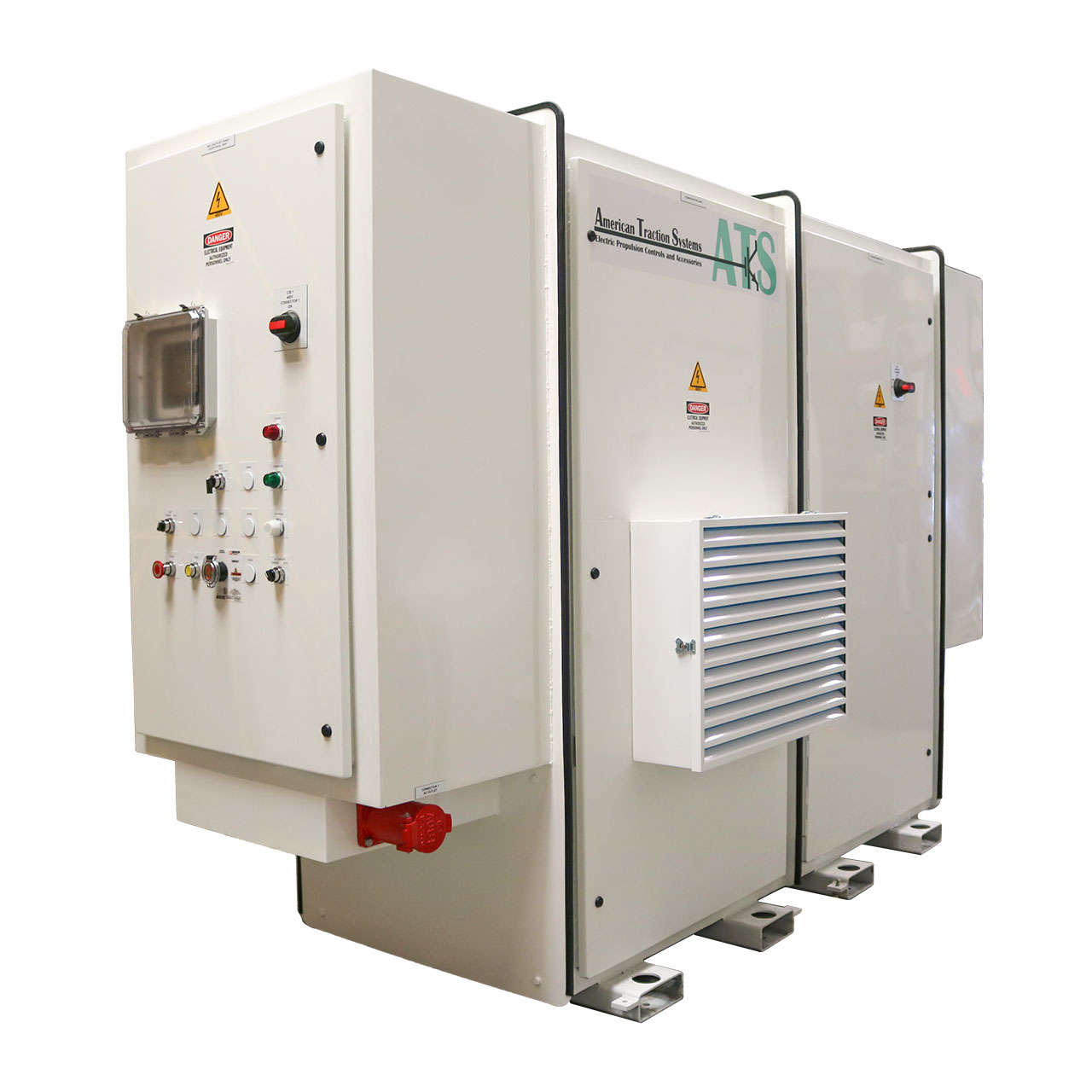

Wayside Charger
Part Number
A300493
System Description
Stationary, fan cooled battery charger, available in 400 KW building blocks for high power locomotive applications. Input voltages from 480 VAC to 12,000 VAC systems are available. Total 20′ enclosure mounted to cement pad.
Specifications
| Wayside Charger Specifications | 425kW | 850kW |
|---|---|---|
| Power Rated Input | 400kW @ 480V AC | 800kW @ 480V AC |
| Power Rated Output | 400kW @ 800V DC | 800kW @ 800V DC |
| Frequency Range Input | 58-60 Hz | 58-60 Hz |
| Frequency Range Output | DC | DC |
| Voltage Range Input | 451-590V @ 100% Tap (480VAC – 12kVAC_ | 451-509V @ 100% Tap |
| Voltage Range Output | 600 to 800V DC | 600 to 800V DC |
| Amps Rated Power Input | 500A @ 100% Tap | 500A @ 100% Tap |
| Amps Rated Power Output | 500A (600A peak) | 1000A (1200A peak) |
