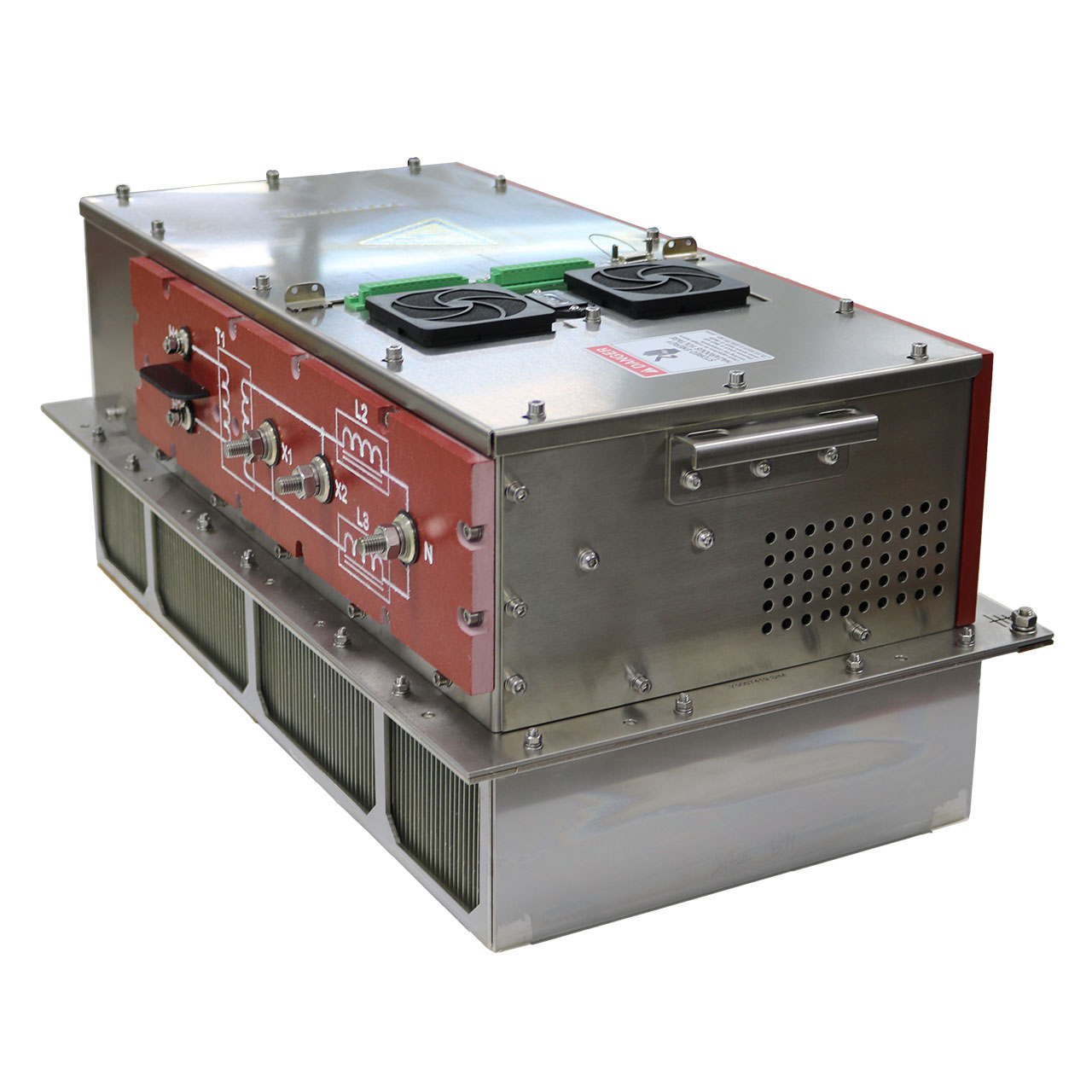

LVPS Battery Charger
Part Number
A300482
System Description
This is a DC/DC constant voltage/ constant current 29.4V DC nominal, 300 A continuous power supply operating from a nominal 460V AC supply. It is self-powered from HVAC and can utilize control power from LVDC when present. It is configured to work in conjunction as a battery charger on transit vehicles that have a blocking diode between the battery and 24V bus or alternatively use a contactor to disconnect the battery when the unit is in operation.
Specifications
| LVPS Battery Charger Specifications | A300482 |
|---|---|
| Power Rated Input | 9.6kW @ 460 V AC |
| Power Rated Output | 8.8 kW @ 29.4 V DC |
| Frequency Range Input | 47 – 63 Hz |
| Frequency Range Output | DC |
| Voltage Range Input | 350 – 530 V |
| Voltage Range Output | 22 – 31 V |
| Amps Rated Power Input | 15 A |
| Amps Rated Power Output | 300 A |
