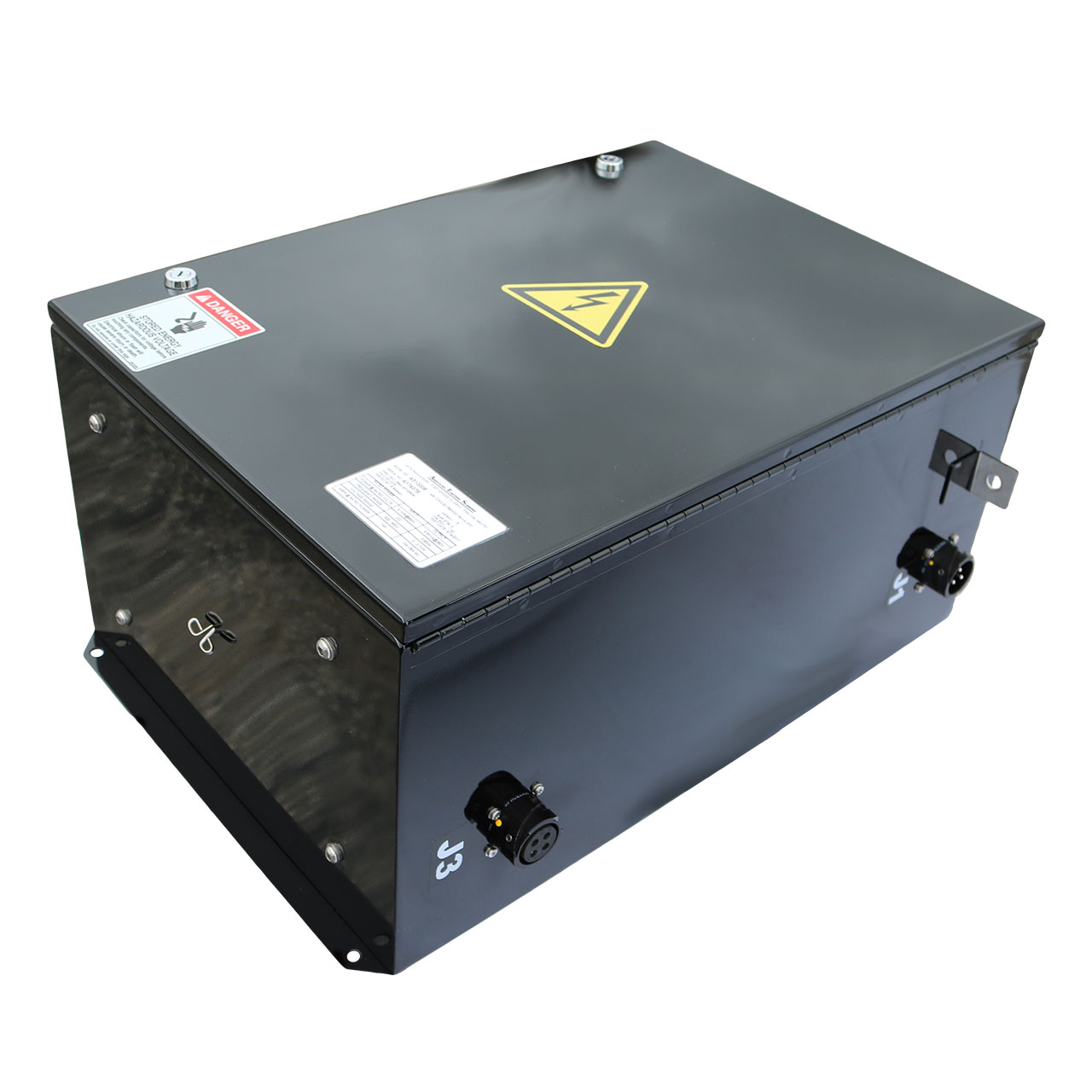

Light Rail VFD
Part Number
A510008
System Description
Air cooled, Induction motor control for air compressors used in the air supply unit (ASU) for a light rail vehicle for sub-systems such as friction brakes or car doors.
Specifications
| Light Rail VFD Specifications | A510008 |
|---|---|
| Power Rated Input | 9.1 kW @ 650 V |
| Power Rated Output | 8.6 kVA @ 380 V |
| Frequency Range Input | DC |
| Frequency Range Output | 0 – 60 Hz |
| Voltage Range Input | 500 – 800 V |
| Voltage Range Output | 0 – V input x.7 |
| Amps Rated Power Input | 14A |
| Amps Rated Power Output | 13A /38A peak |
