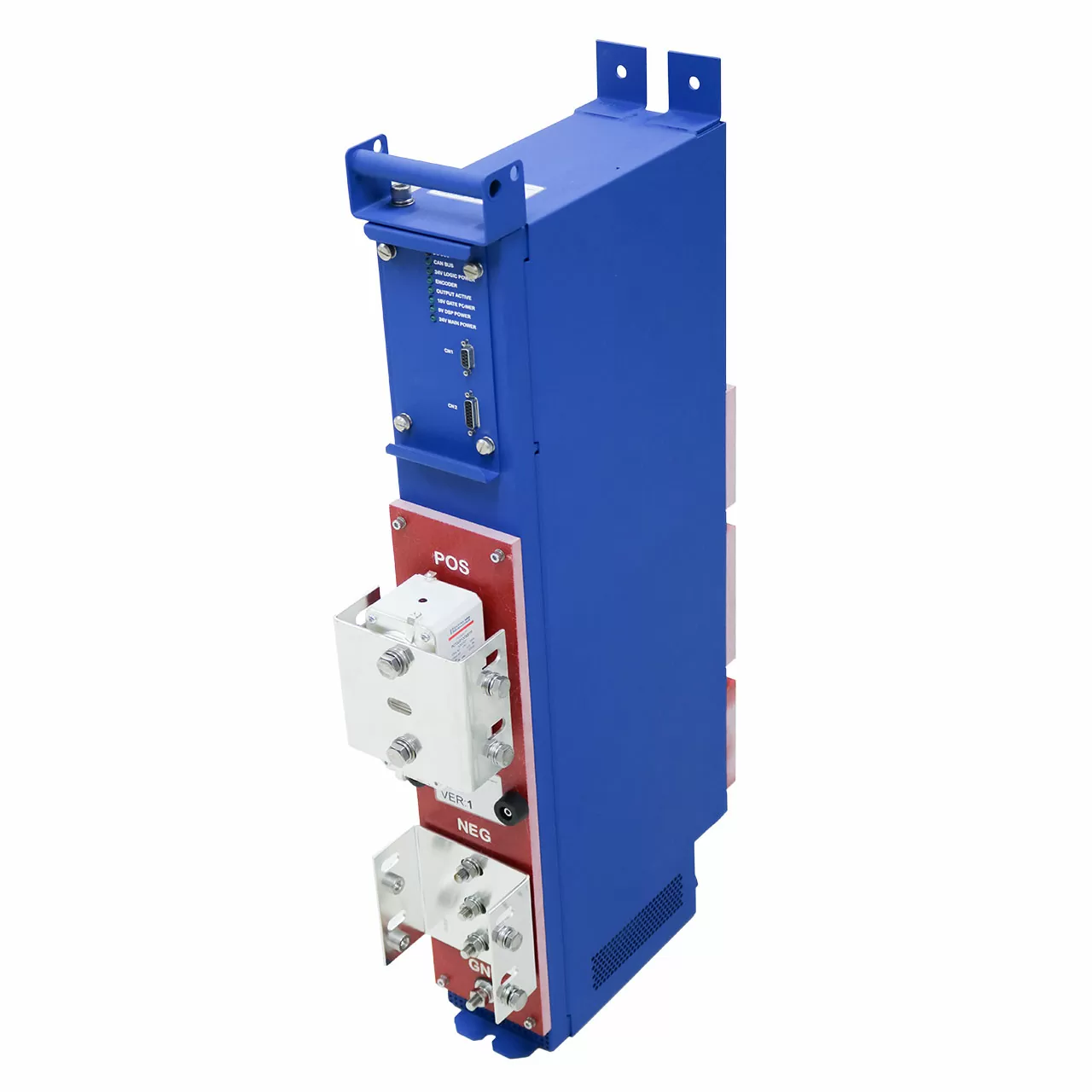

Dual Inverter
Part Number
A300693
System Description
This module is a liquid cooled, power semiconductor converter module suitable for use as a component of a traction electric propulsion system. Options for use are:
- Induction motor drve for main traction
- On-board 3 phase AC power for auxiliary power units
- Rectification of 3 phase AC power from AC generator to supply the common DC bus.
Specifications
| Dual Inverter Specifications | A300693 |
|---|---|
| Power Rated Input | 456 kW |
| Power Rated Output | 225 kW @0.8 pf (x2) |
| Frequency Range Input | DC |
| Frequency Range Output | 0 – 60 Hz |
| Voltage Range Input | 700 – 750 V |
| Voltage Range Output | 440 – 480 V (x2) |
| Amps Rated Power Input | 650 A |
| Amps Rated Power Output | 353 A rms (x2) |
