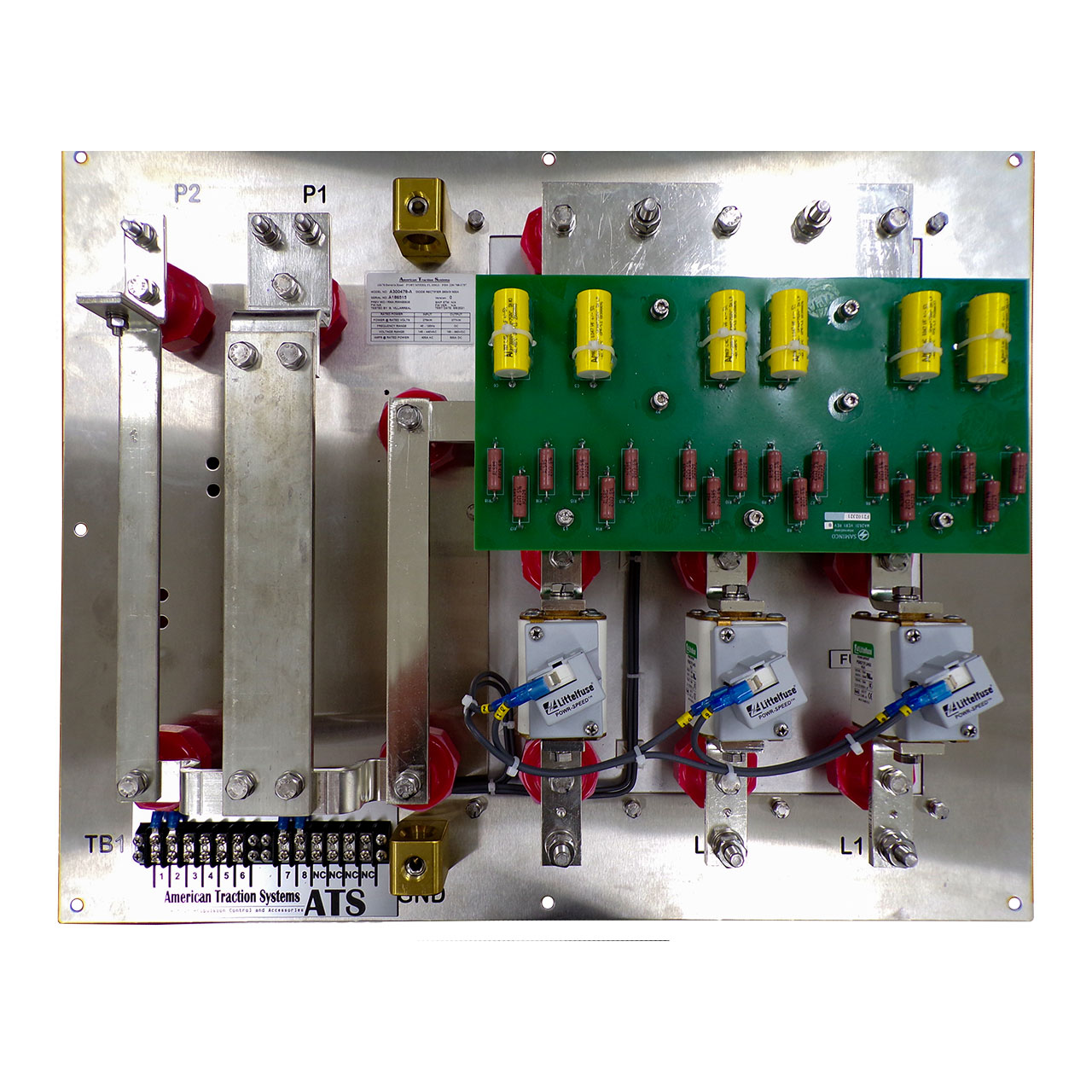

Diode Rectifier
Part Number
A300478-A
System Description
This is a diode rectifier which can be used with any 3-phase generators that produce 0 – 1150AC at 450A.
Specifications
| Diode Rectifier Specifications | A300478-A |
|---|---|
| Power Rated Input | 278 kW |
| Power Rated Output | 277 kW |
| Frequency Range Input | 40 – 120 Hz |
| Frequency Range Output | DC |
| Voltage Range Input | 140 – 440 V |
| Voltage Range Output | 180 – 560 V |
| Amps Rated Power Input | 400 A |
| Amps Rated Power Output | 500 A |
